Adria 71

codice: AD71F

materiale: Acciaio Inox AISI 304 18/10

spessore: 1 mm

finitura: spazzolata


Base 80 cm

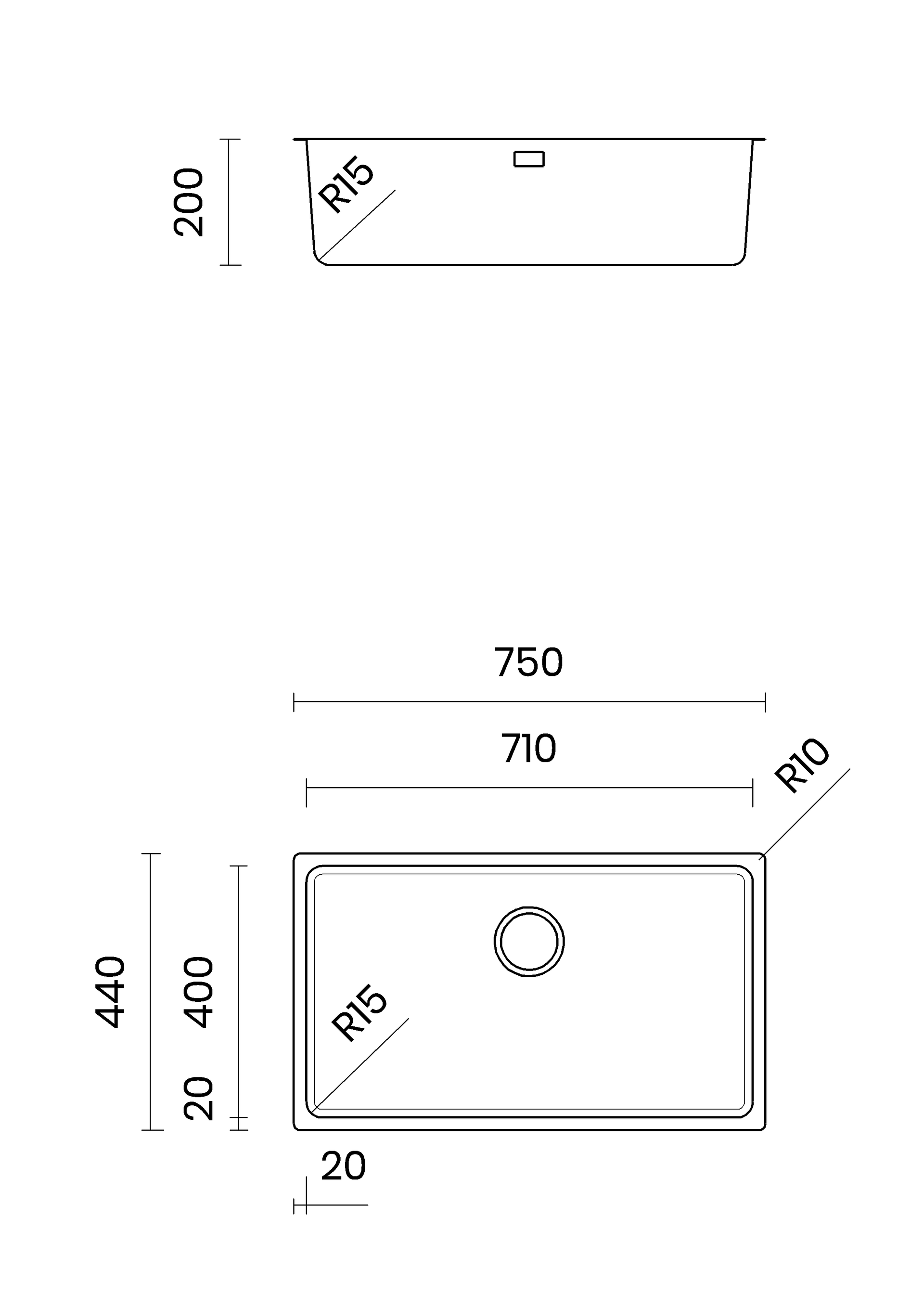

dimensioni esterne 750x440 mm

dimensioni vasca 710x400 mm

raggio 15 mm


troppo pieno: perimetrale

piletta: Ø 114 mm

sifone incluso


installazione: sopratop / filotop / sottotop


dimensione imballo: 81x50x25 cm

peso: 9,8 kg

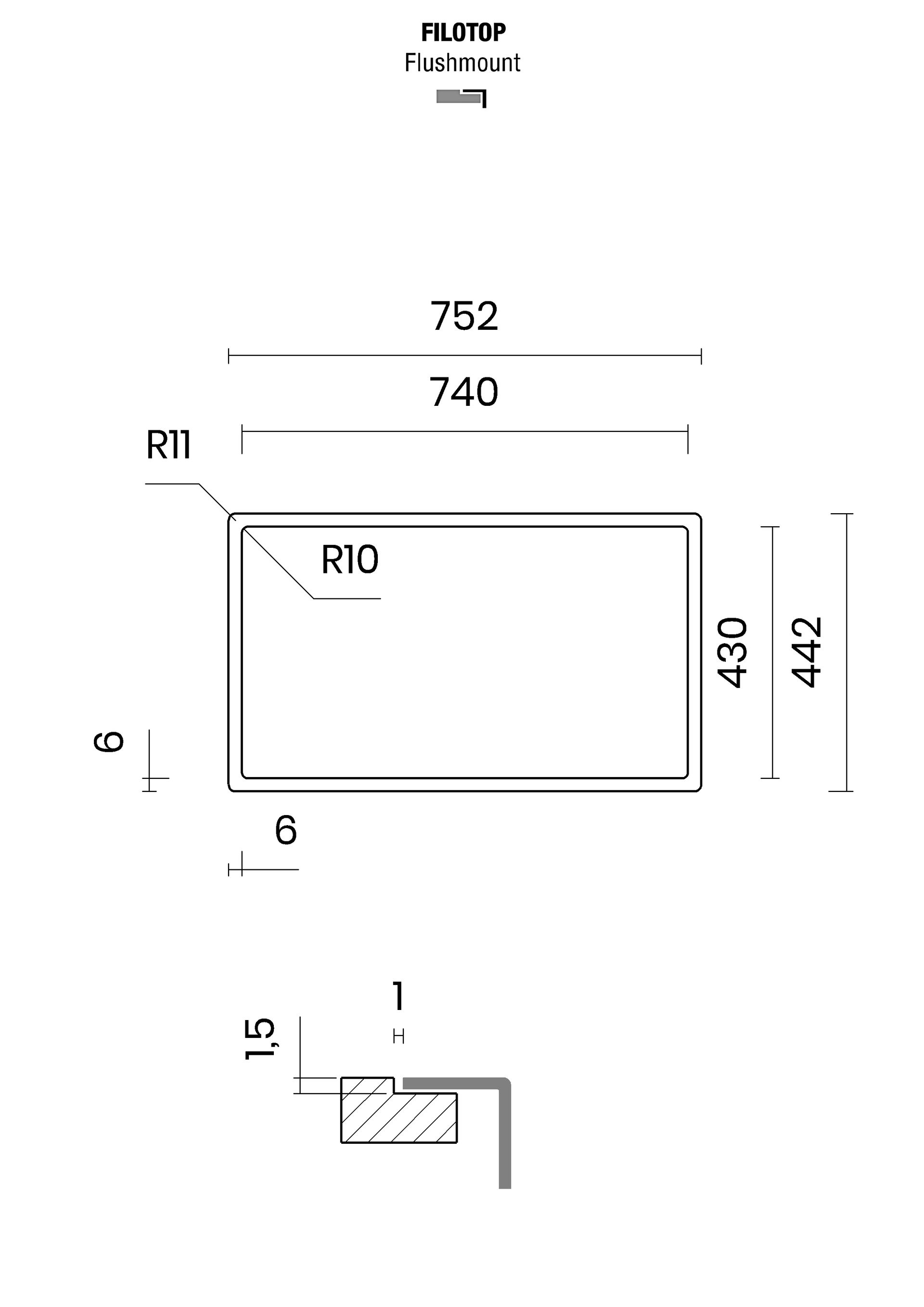

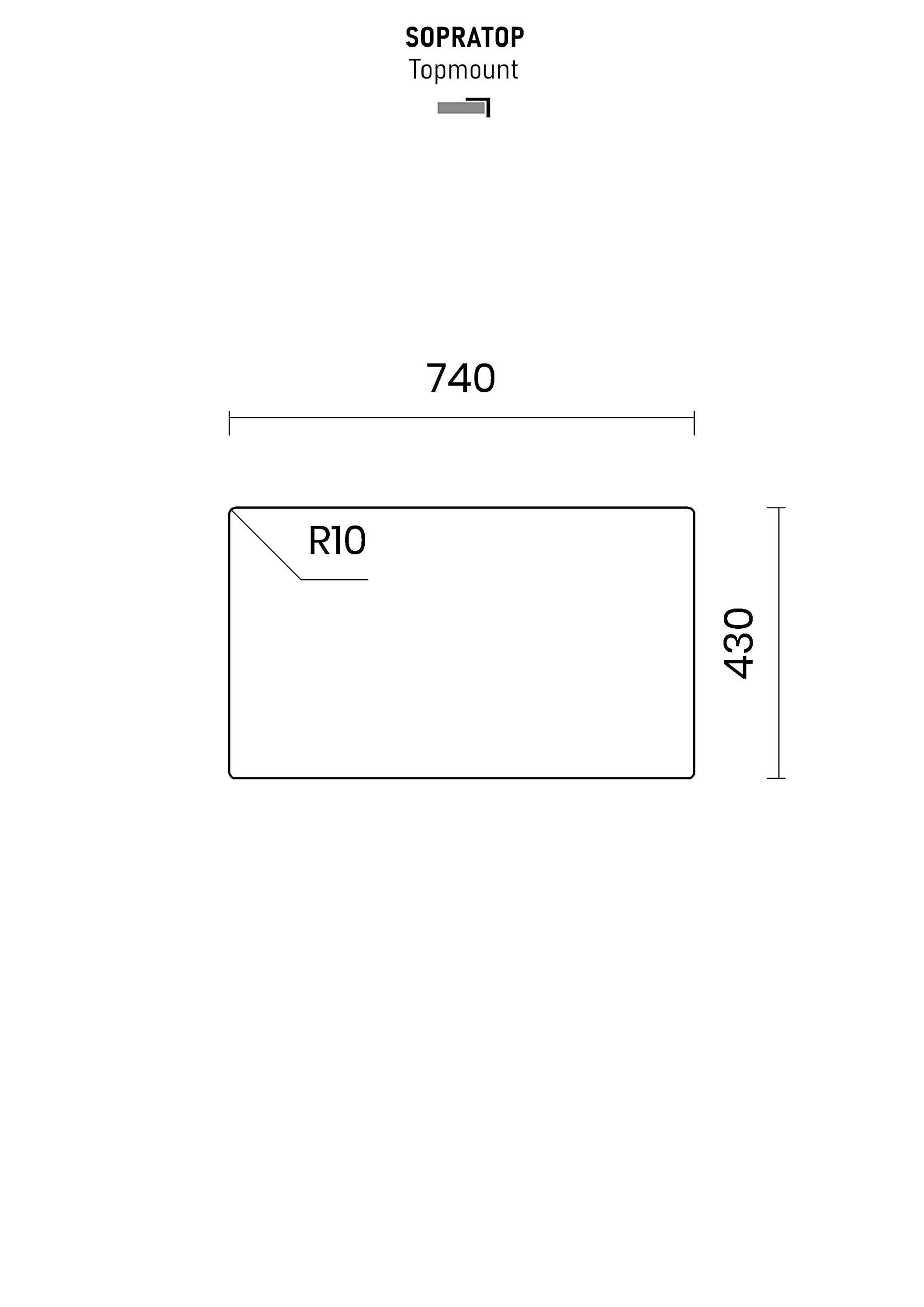

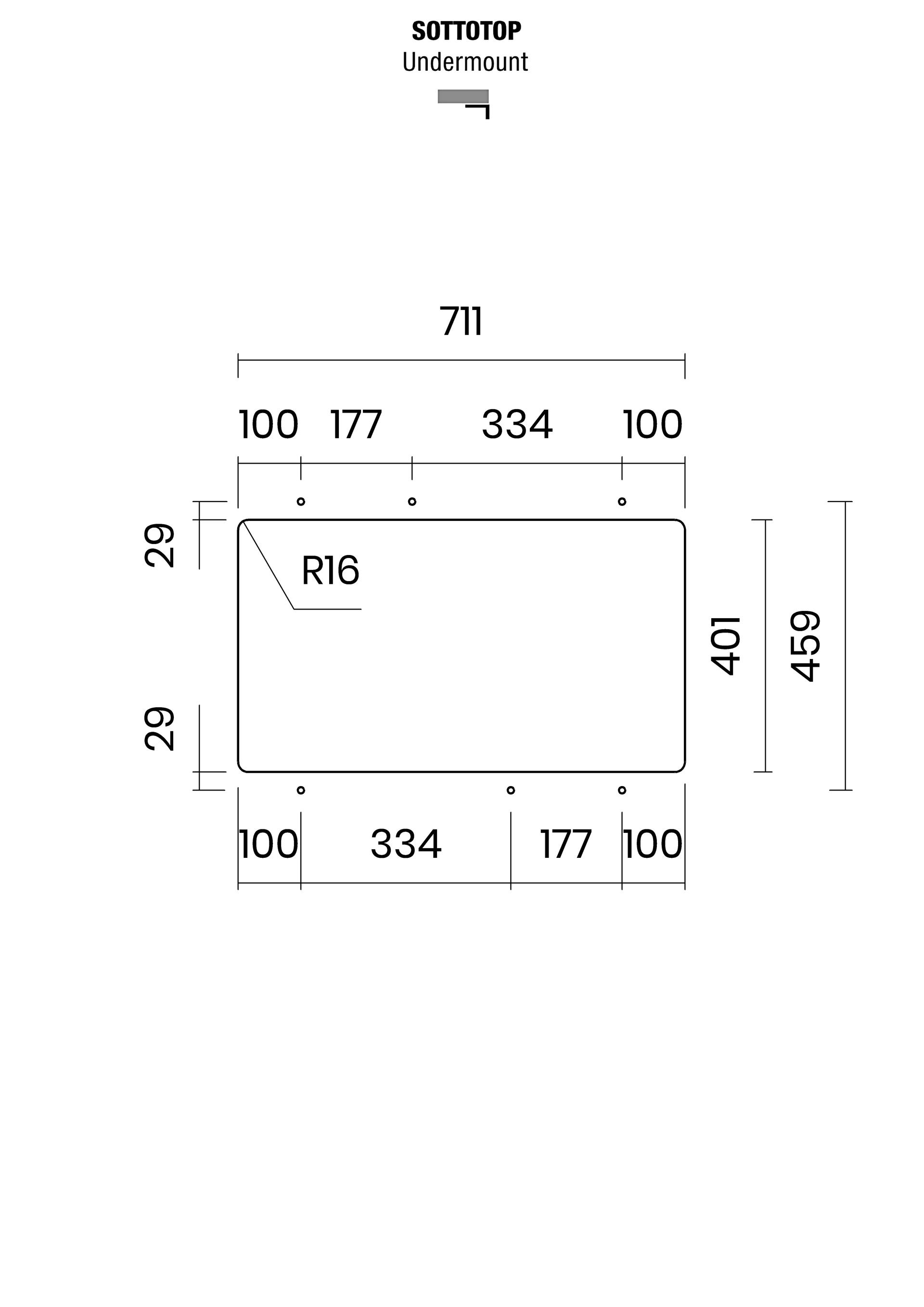

schemi di incasso

downloads

scheda prodotto

scheda installazione

file dxf
