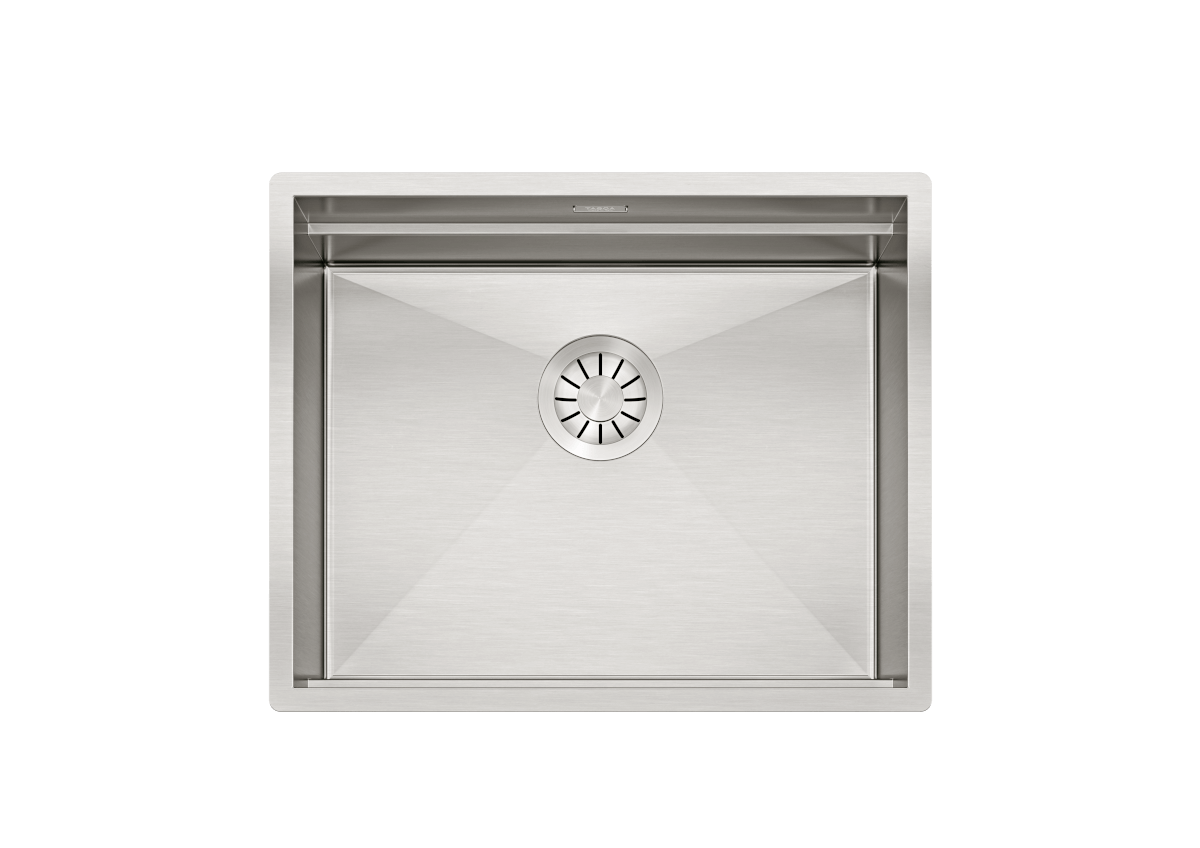

Step 50

code: ST50F

Material: AISI 304 18/10 Stainless Steel

thickness: 1 mm regular

finish: SatinPlus


Cabinet 60 cm

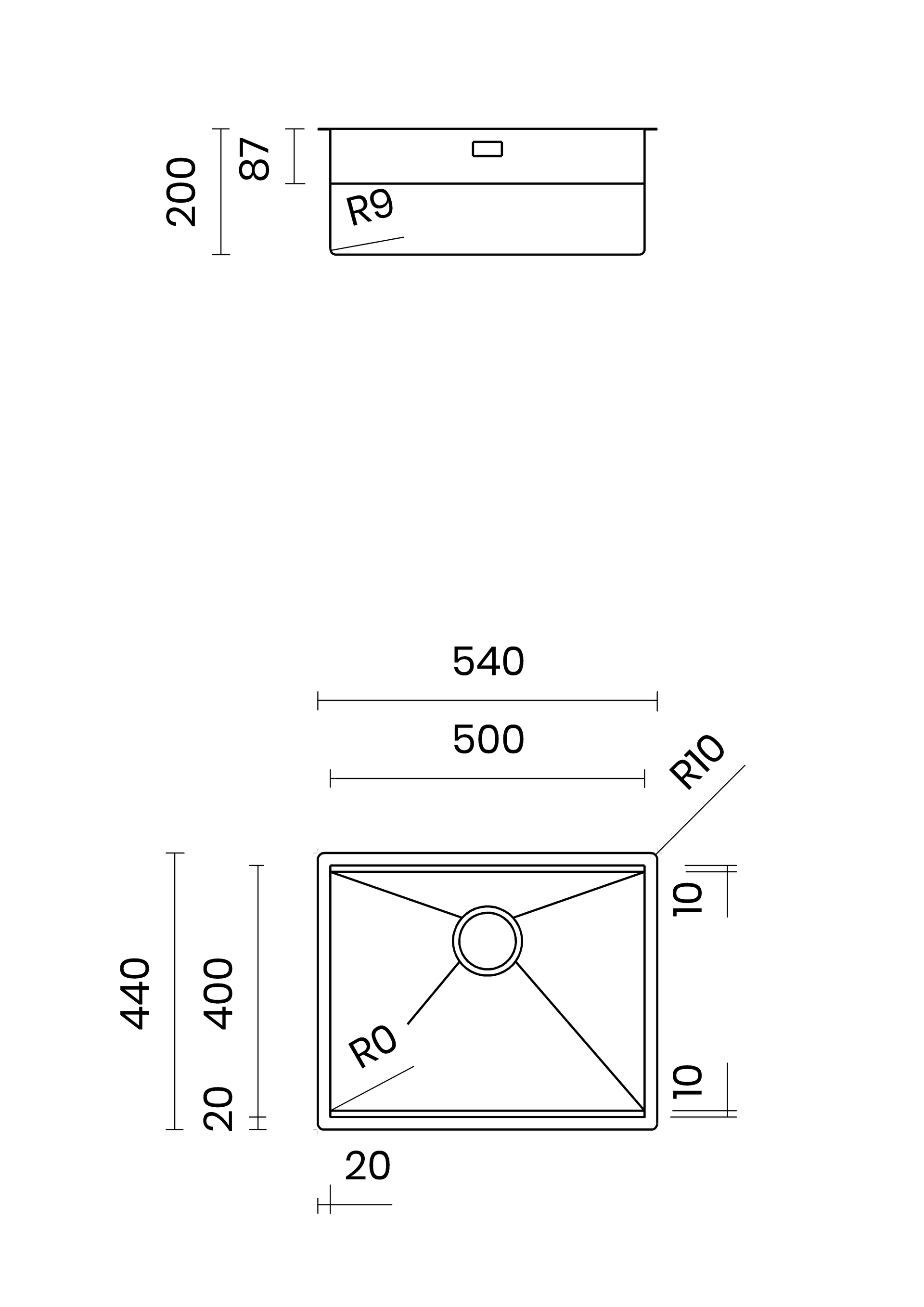

external dimensions 540x440 mm

bowl dimensions 500x400 mm

radius 0 / 9 mm


Rectangular overflow

waste: Lotus model Ø 114 mm in satin stainless steel with rotary control

siphon included


installation: top-mount / flush-mount / under-mount


Packaging size: 60x50x30 cm

Weight: 9 kg

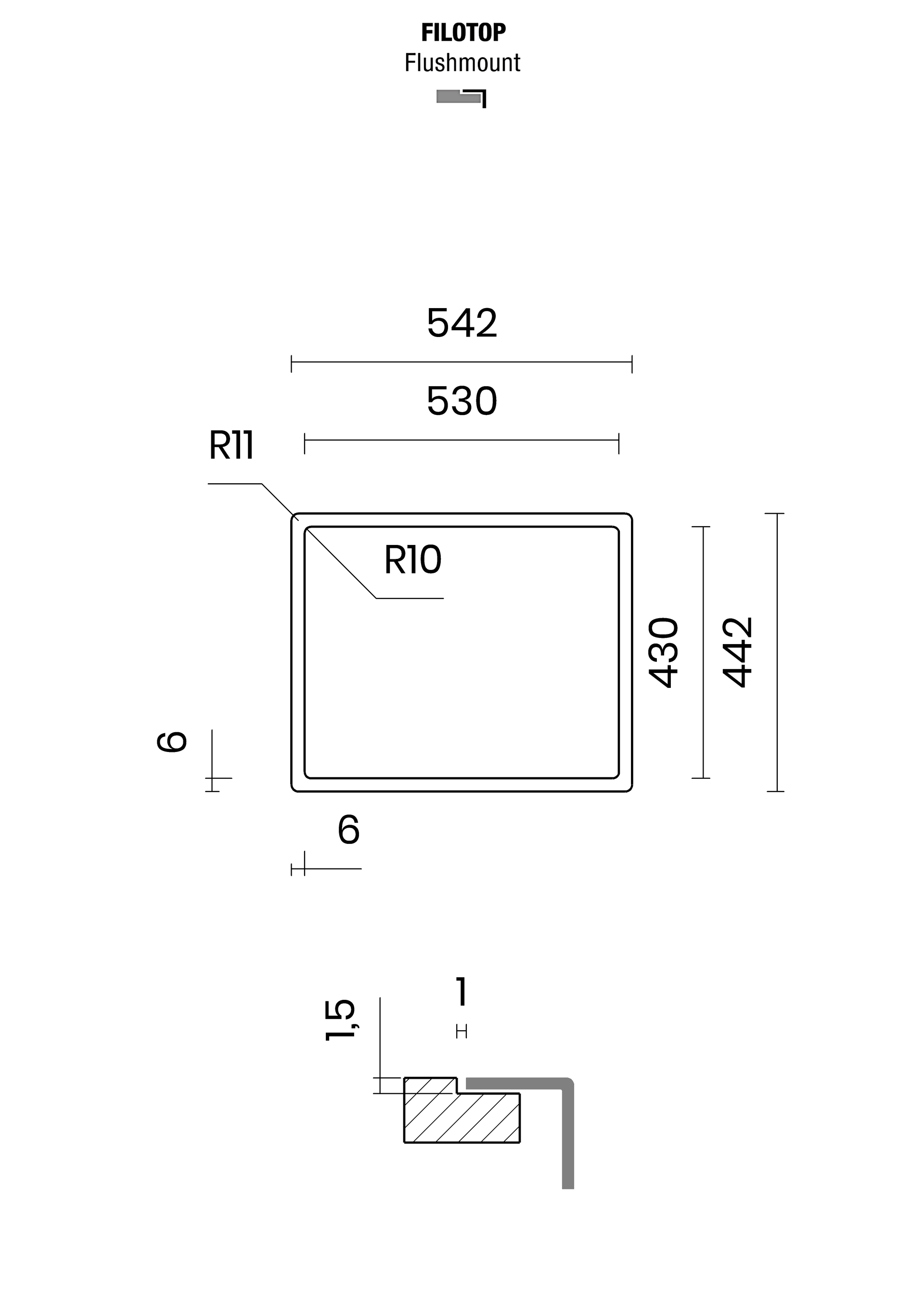

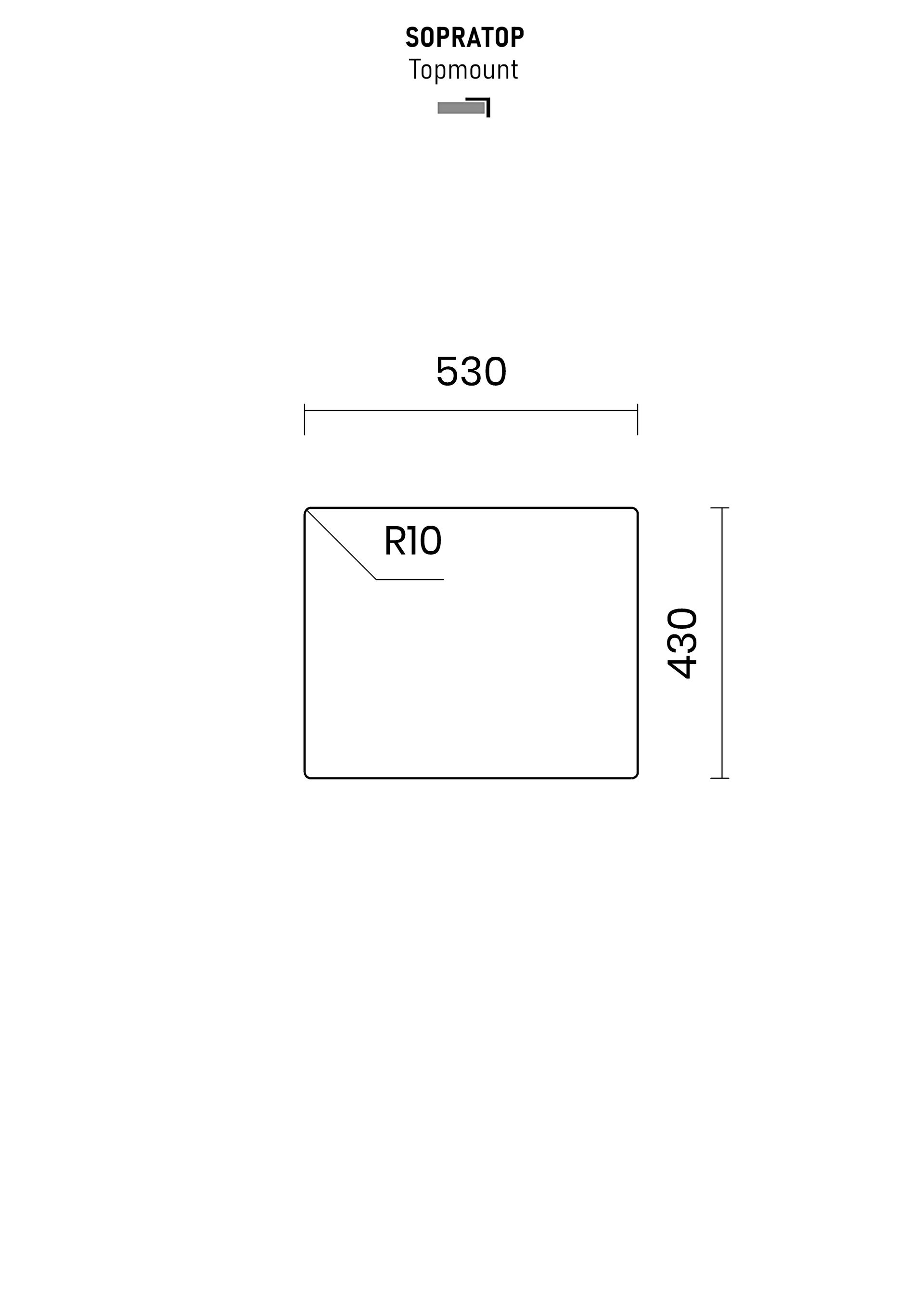

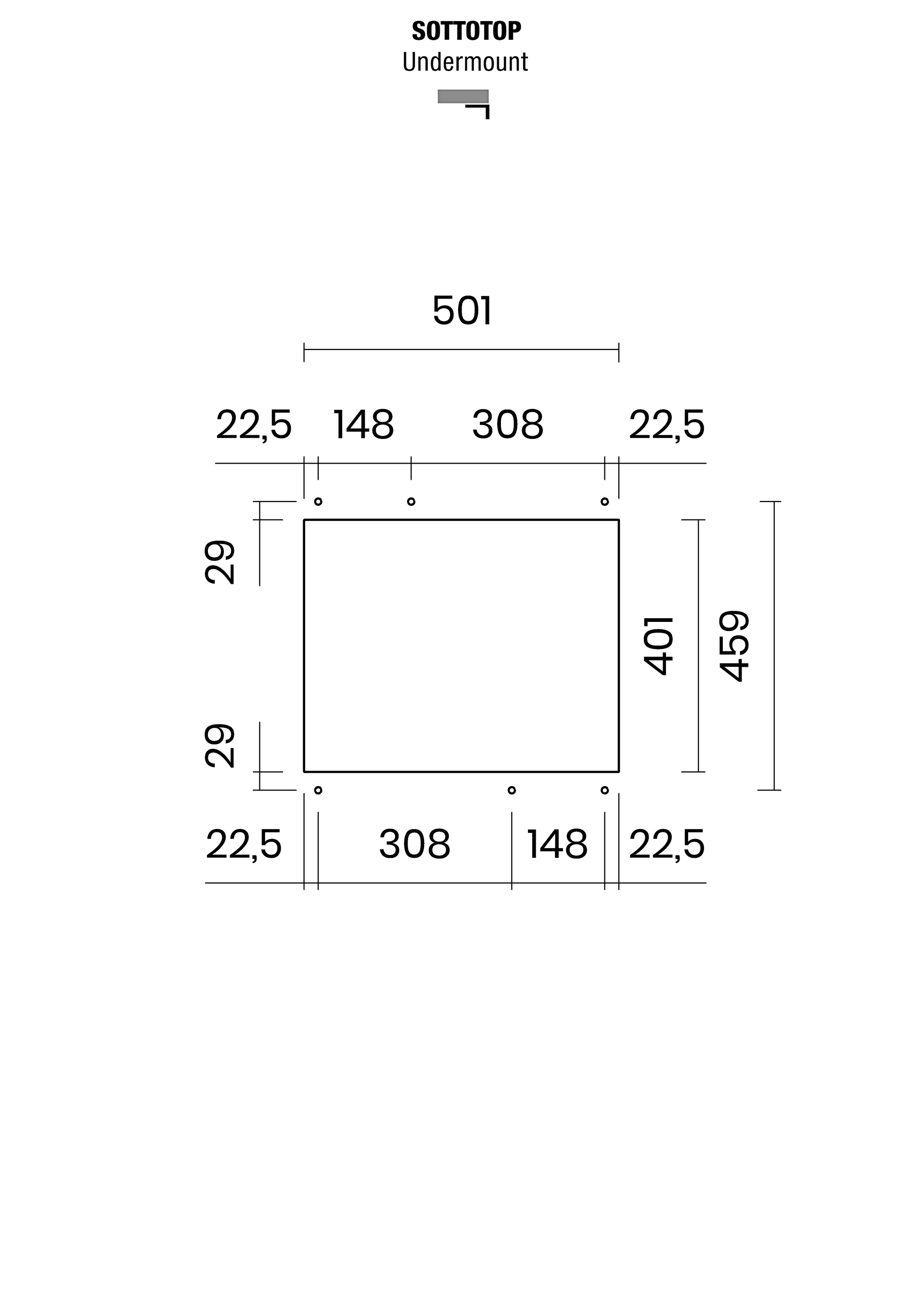

cut-out

downloads

product sheet

installation sheet

file dxf
